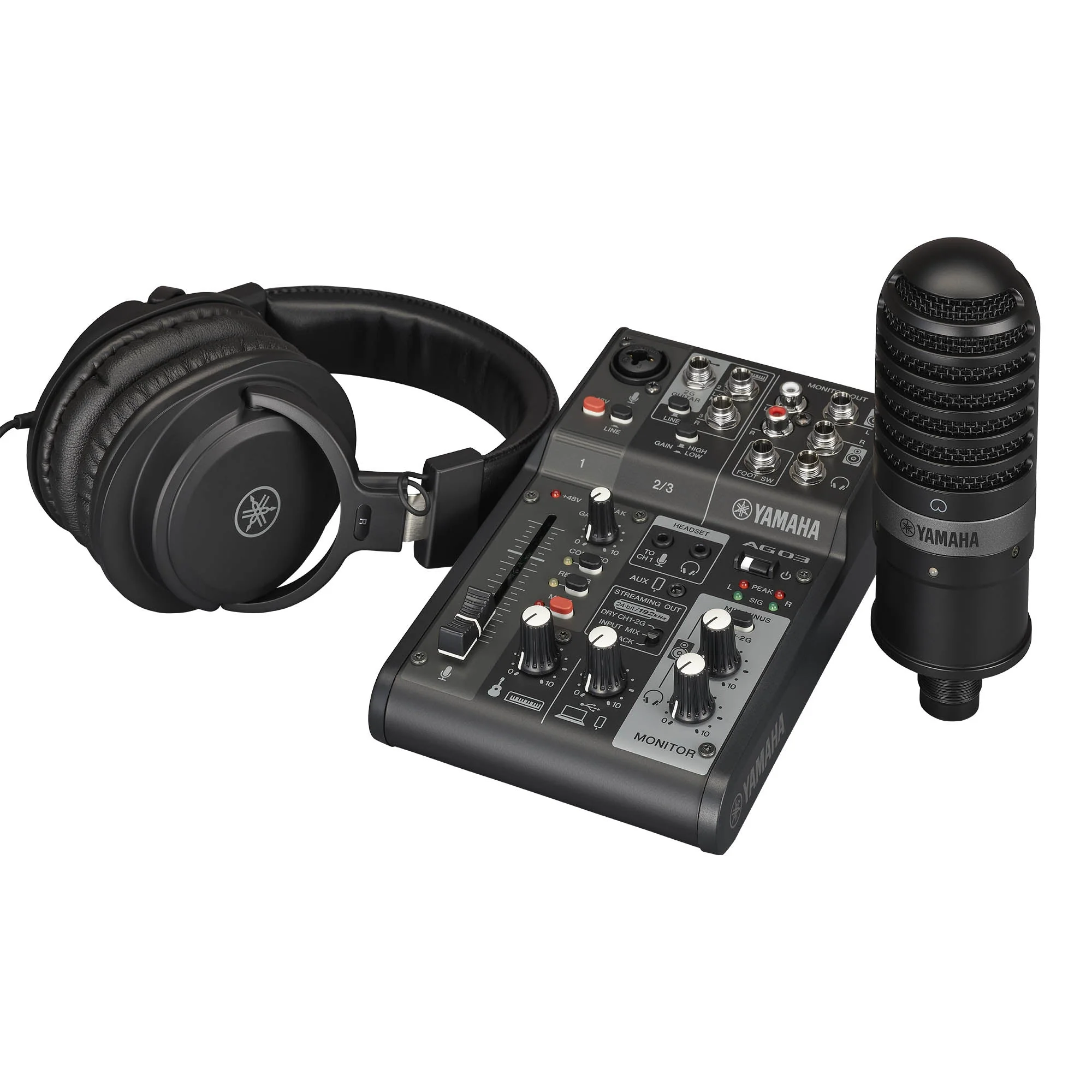

Yamaha AG 03 MK2 Live Stream Pack BK

The Yamaha AG03 MK2 Live Stream Pack is a complete all-in-one solution for anyone looking to start streaming straight away. Centred around the AG03 MK2 3-channel live streaming mixer and USB audio interface, this package provides all the essential tools needed for clear sound, reliable performance and professional results.
Alongside the AG03 MK2 mixer, the pack includes a Yamaha YCM01 studio-quality condenser microphone, an XLR mic cable and YH-MT1 professional monitoring headphones. Together, they form a cohesive setup that ensures your voice, instruments and audio playback are captured and delivered with precision.
Designed with simplicity in mind, this package is perfect for beginners or anyone building a new streaming system from scratch. The AG03 MK2 Live Stream Pack also brings a clean, unified look to your streaming environment.
Features

Complete live streaming package with mixer, microphone, headphones and cable
AG03 MK2: 3-channel mixer with integrated USB audio interface
YCM01: Studio-quality cardioid condenser microphone with XLR connection
YH-MT1: Professional studio-quality monitoring headphones
3m XLR microphone cable included


Specification

Mono input channel: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously

Stereo input channel: 1 - Stereo Line / Guitar Input (Mono)

Smartphoneinput channel : 1 - 4-pole mini input/output (TRRS)

USB input channel: 1
PHONES output channel: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously

Smartphone output channel: 1 - 4-pole mini input/output (TRRS)

MONITOR OUT output channel: 2 - L/R Stereo: Phone, RCA

USB output channel: 1
Bus: 1 Stereo

Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
Microphone Unit: Back electret condenser

Polar Pattern: Cardioid

Adress Type: Side

Frequency Response: 30 Hz - 20 kHz

Max Input SPL: 130 dB (1.0% THD at 1 kHz)

Sensitivity: 14.1 mV/Pa (-37 dBV ± 3 dB at 1 kHz, 1 Pa = 94 dB SPL)

Connector: XLR
Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information, Microphone stand adaptor x 1, Microphone pouch x 1, 5/8" to 3/8" threaded adapter x 1, Ownerâ??s manual
